The Ring Joint Alternative

• Offering a full range of couplings and fittings for a variety of service applications.
• Performance standards meet and or exceed the requirements of ASTM F1476 & AWWA C606.

• Available sizes 200MM – 2600MM (8”-104”).
• Pressure rating up to 40bar.

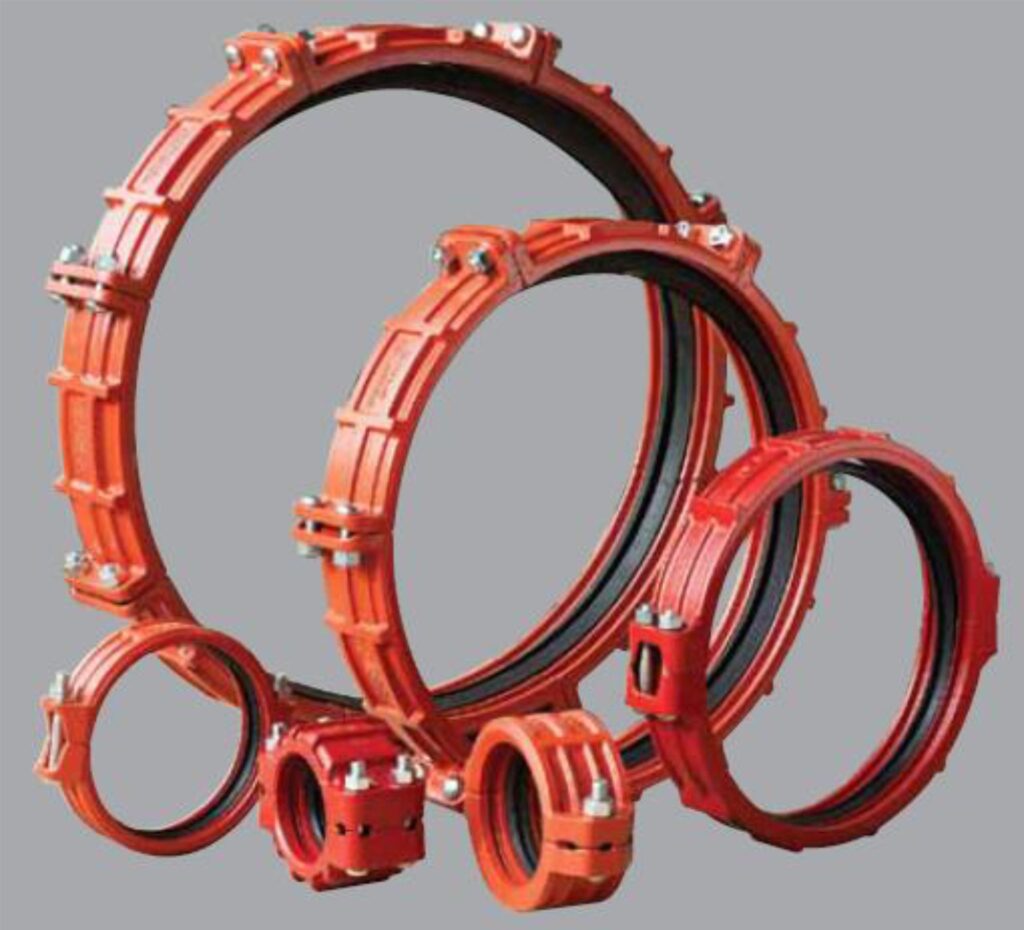

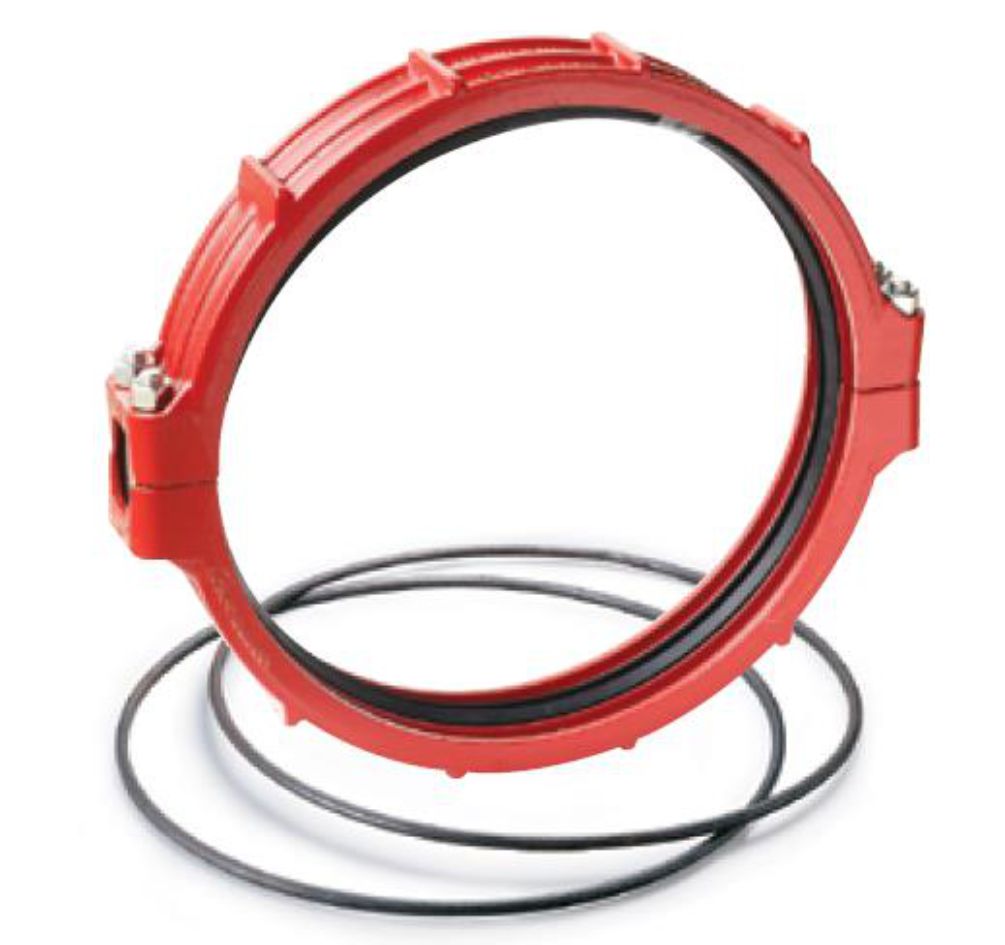

• Size 200NB -650NB 2- segment coupling.

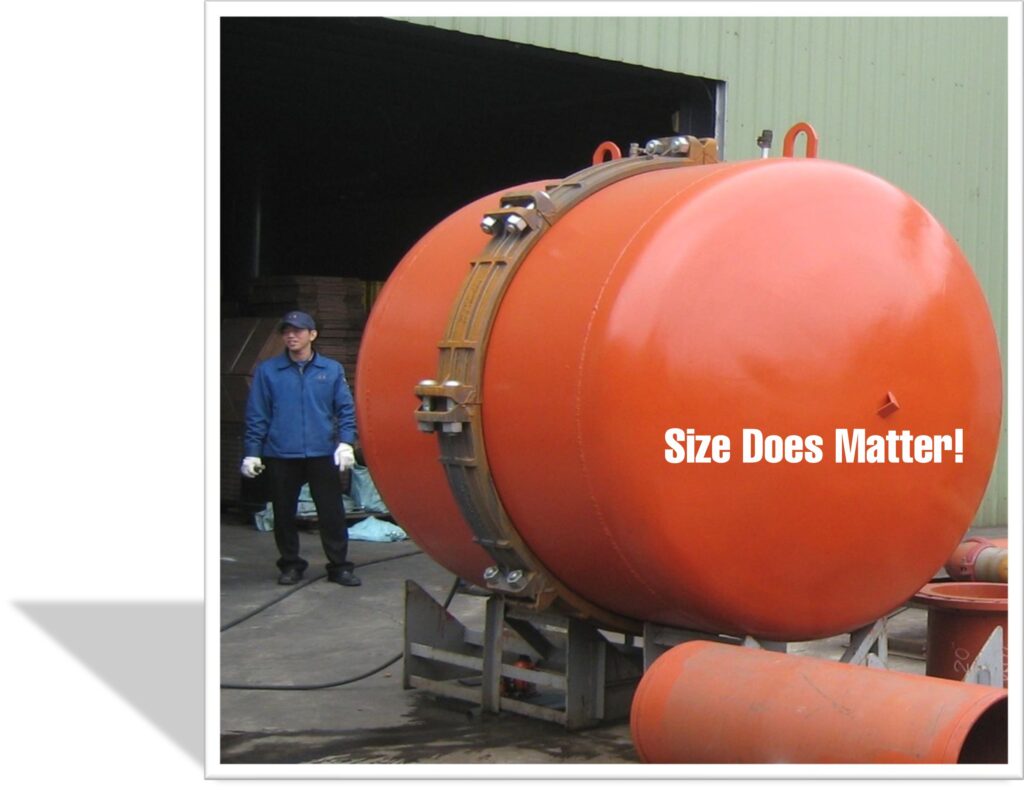

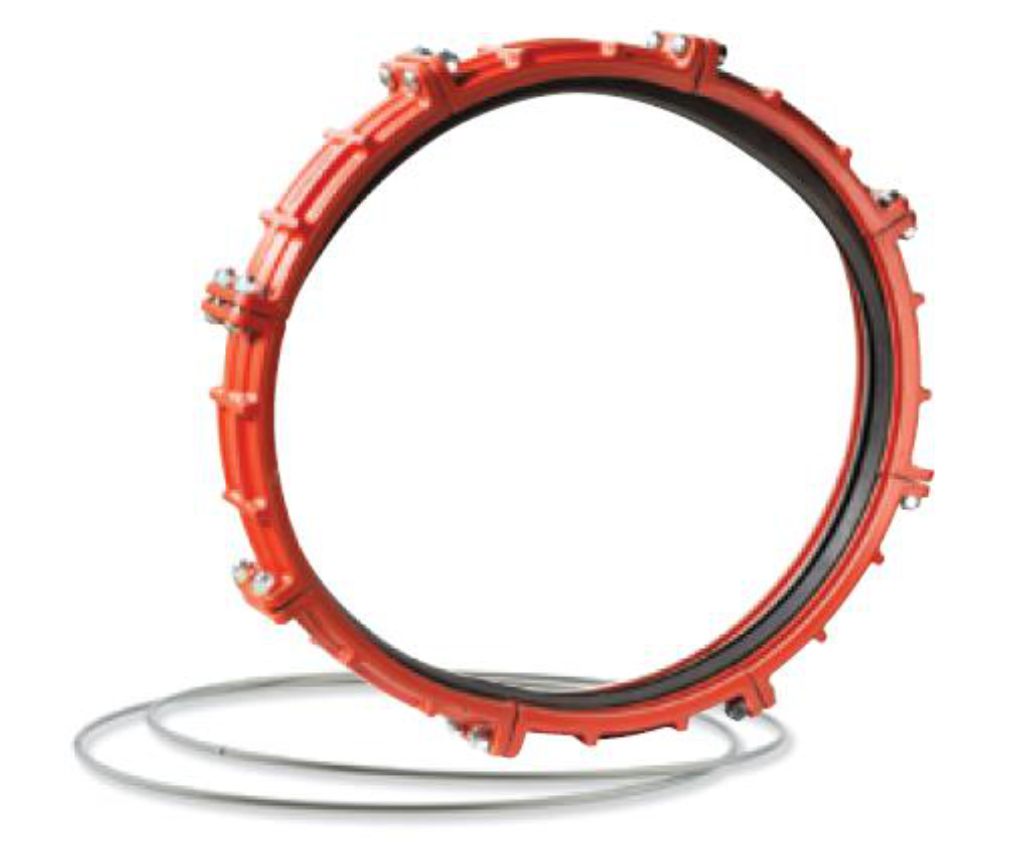

• Size 700MM-2600MM Multi segment coupling.

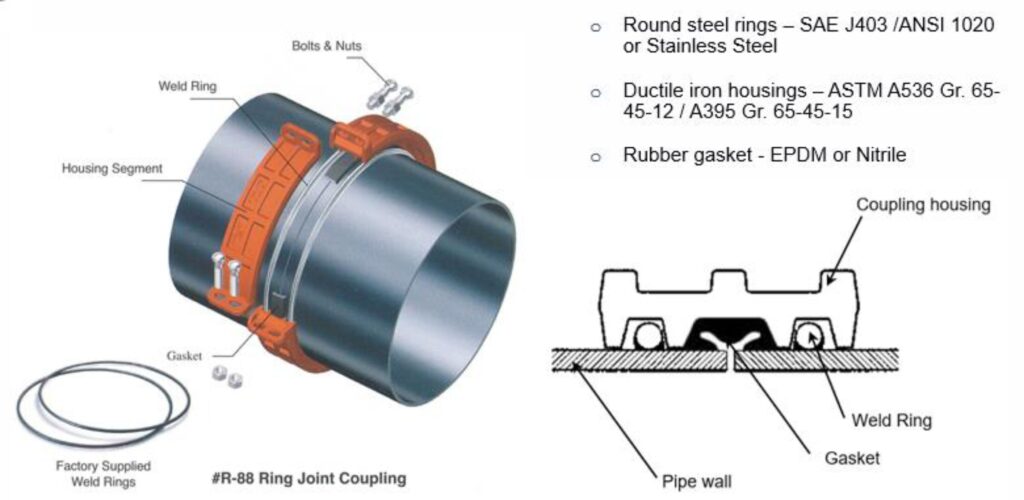

Ring Joint System Anatomy

Design Features – Ring Welding

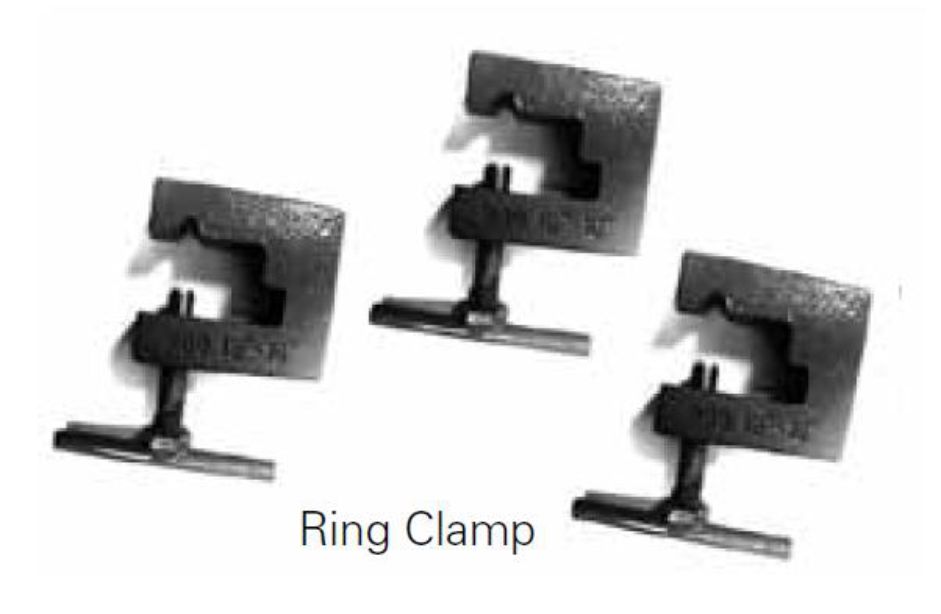

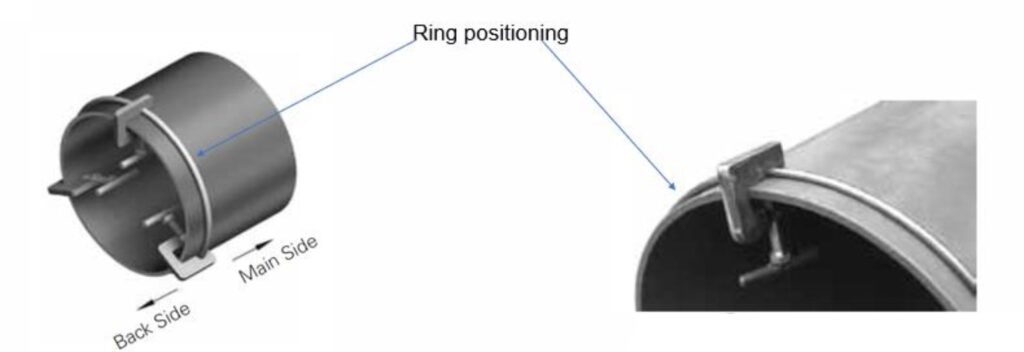

• Positioning of the Ring is done with Ring-Clamps
• Different versions available for Rigidity and Flexibility
• Workshop setup in-line makes welding efficient.

Welding Instruction

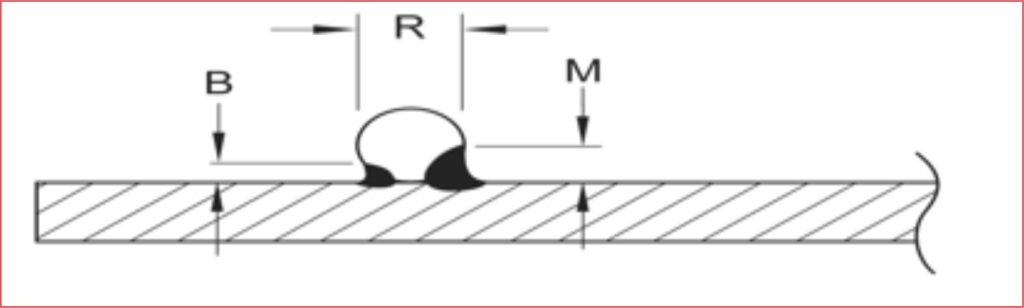

Option A

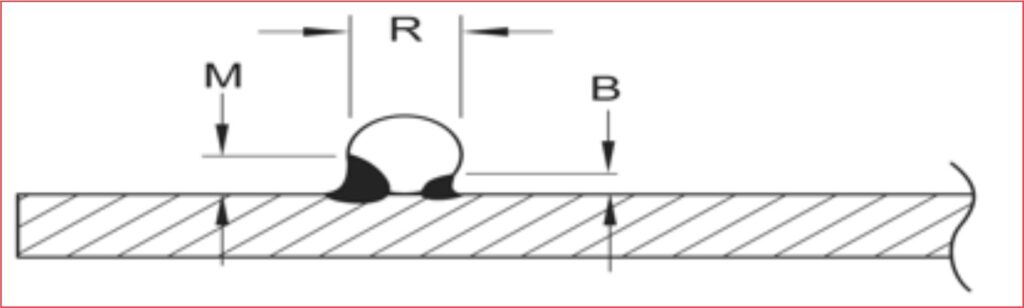

Main Weld + Back Weld

Option B

Back Weld + Main Weld

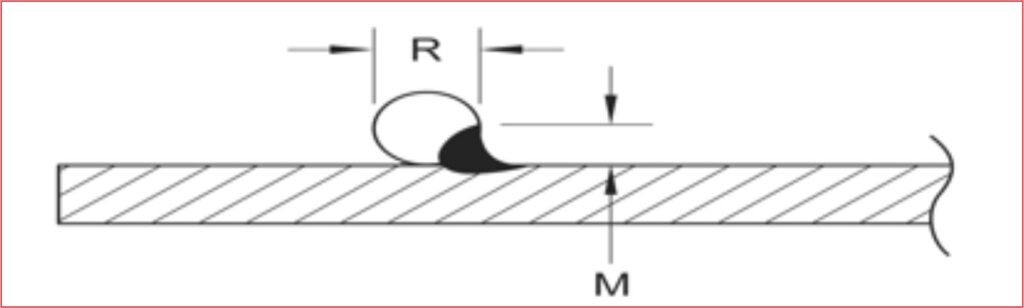

Option C

Main Weld only

Design Features

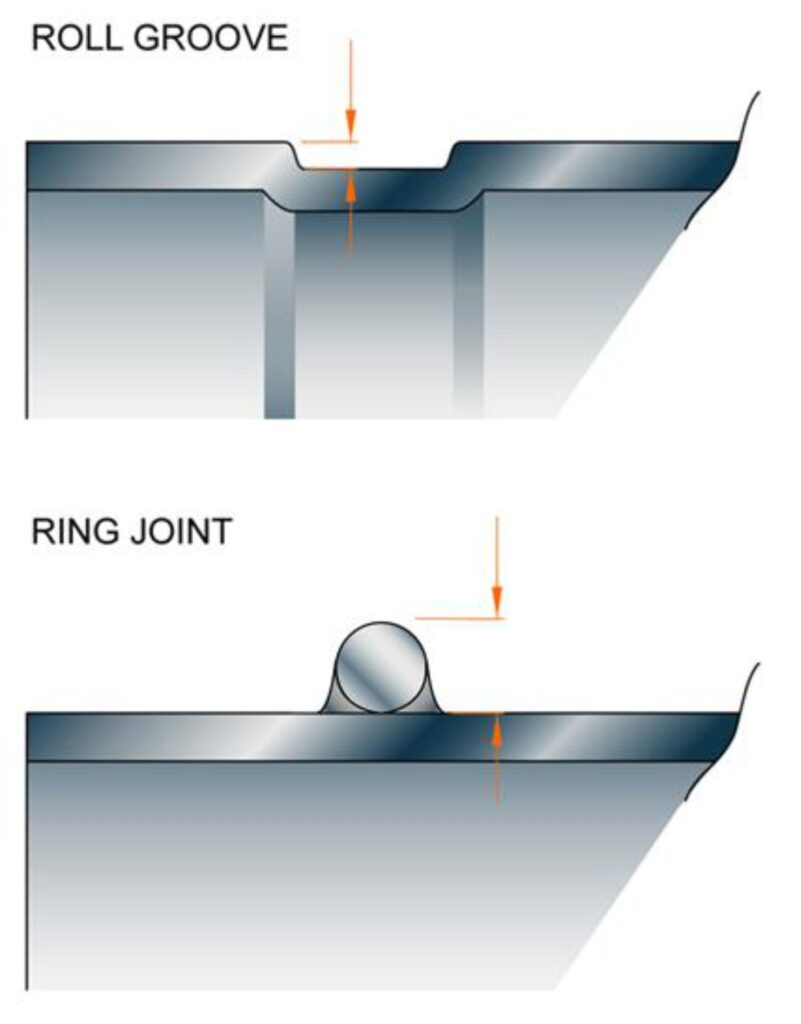

• Weld rings can provide higher service pressures than equivalent sized grooved joints
• Grooved system performance depends on the pipe wall thickness
• Thin wall pipe > pressure rating reductions
• Weld Ring can withstand 2 ~ 3 times the shearing force and end load of roll grooves
• Ring Joint system performance does not depend on pipe wall thickness.

• No pipe end flare
• No protrusion inside pipe

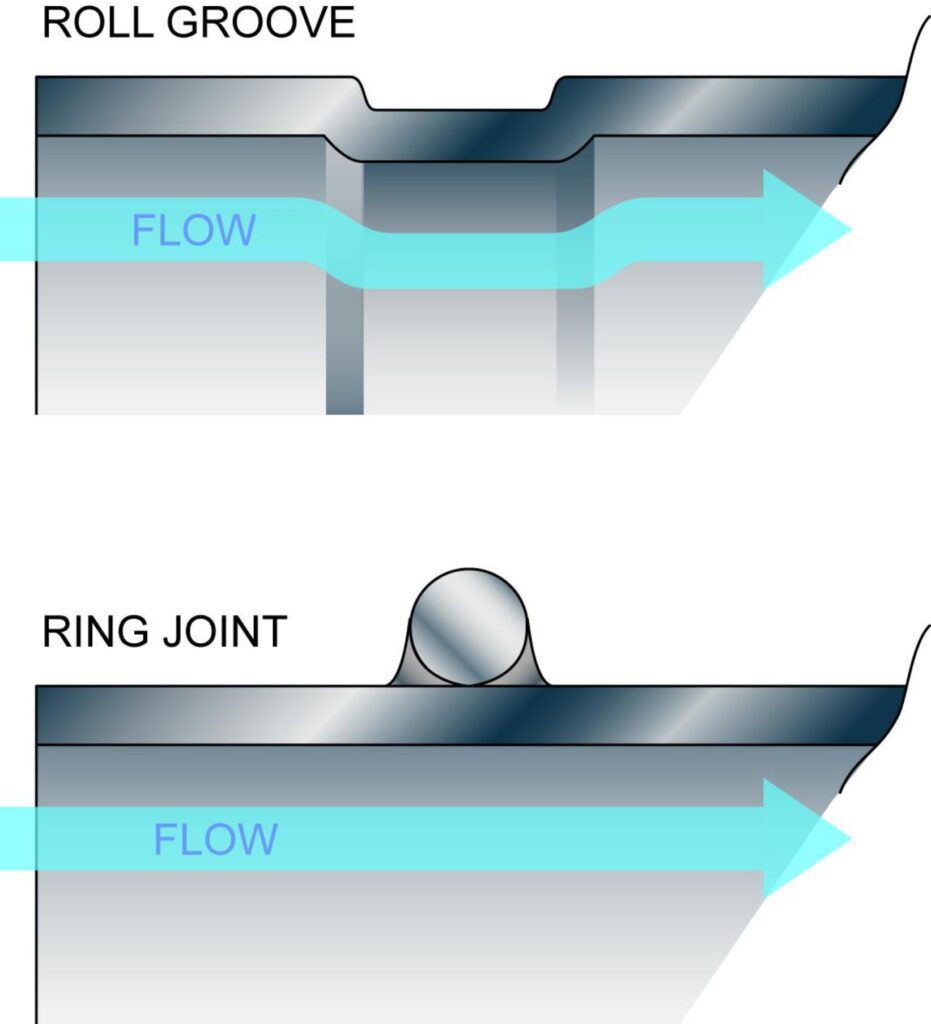

• Reduces flow interference
• Better Performance
• Longer Service Life

Design Features – Ring Welding

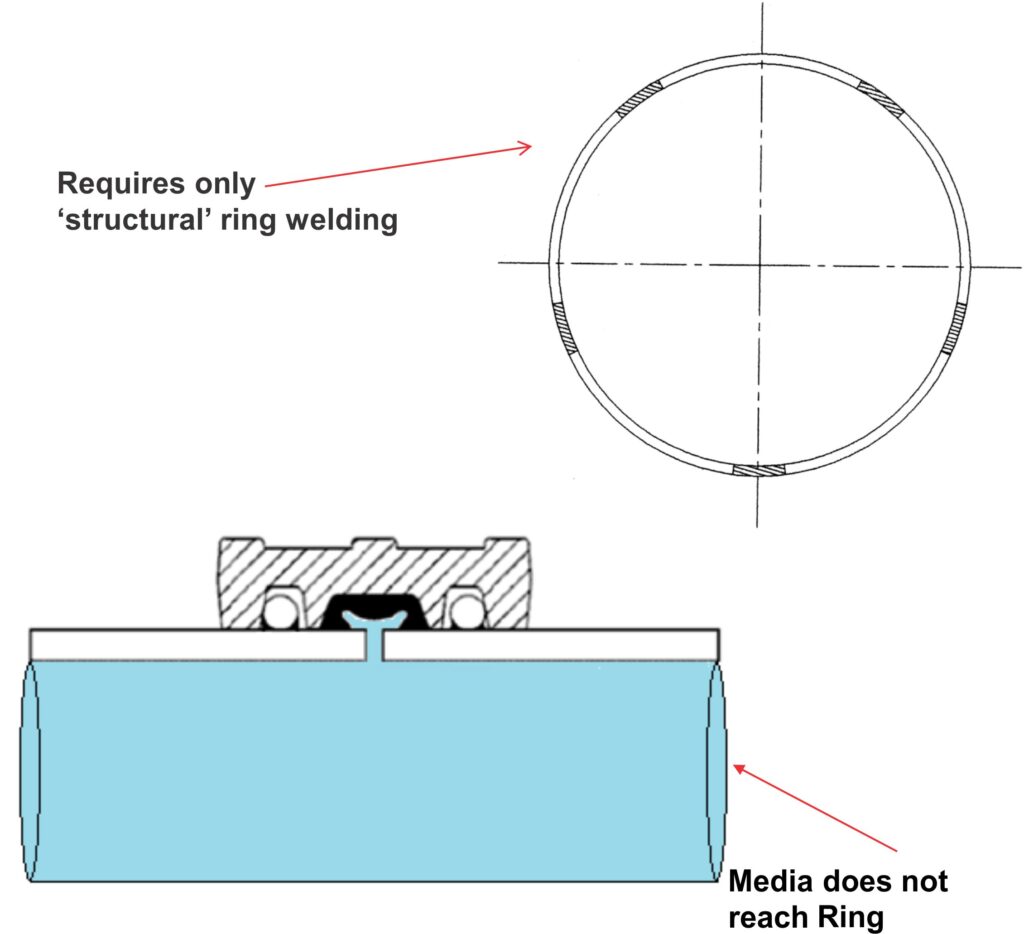

• Does not affect sealing ability of joint

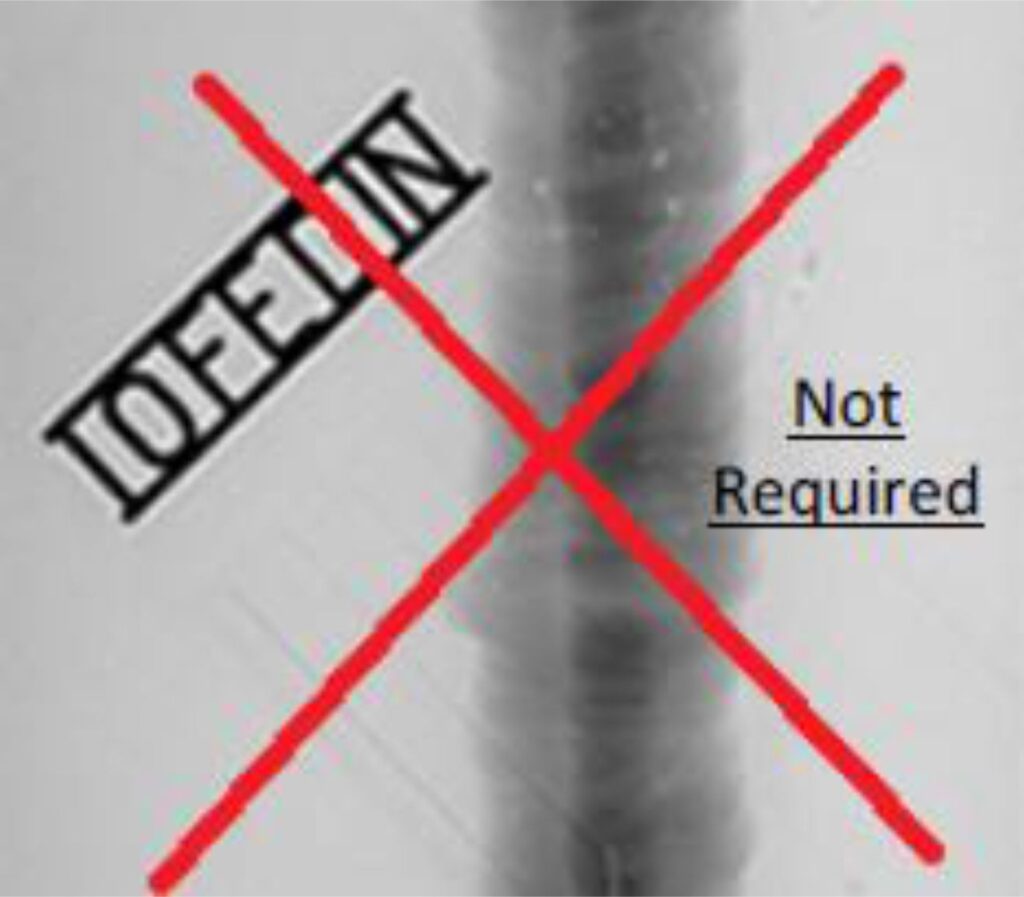

• No need to inspect or x-ray the weld for leaks

• Time & Cost Savings

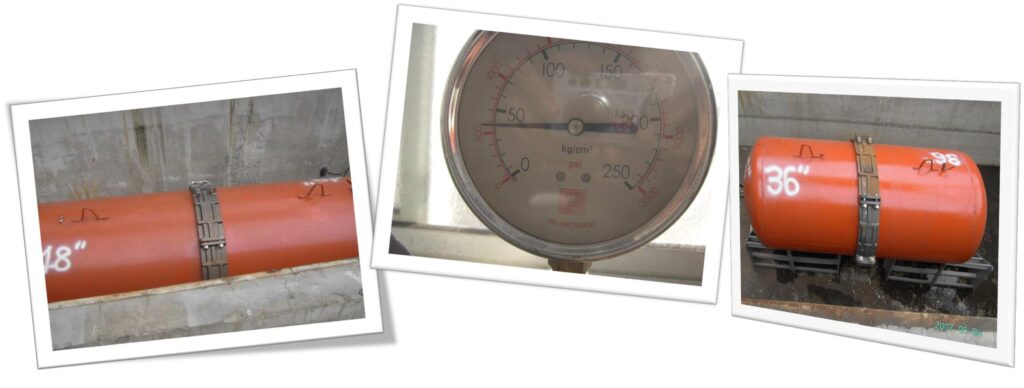

900 NB to 1,2M NB R-88 Hydro Test (585 psi / 40 bar)

1,8M R-88 Hydro Test (350 psi - 24 bar)

RJ System Recap

• Sizes Available 200MM – 2500MM (8” – 104”).
• 2-segment style available 200MM650MM (8” – 26”)
• High Working Pressure & End Load Capacity
• Carbon Steel & Stainless Steel
• Restrained Joint
• Flexible or Rigid
• Installs with any Pipe Wall Thickness
• Ease of Pipe End Preparation
• Compatible with Butt-Weld Fittings
• Reduced Installation Time & Cost
